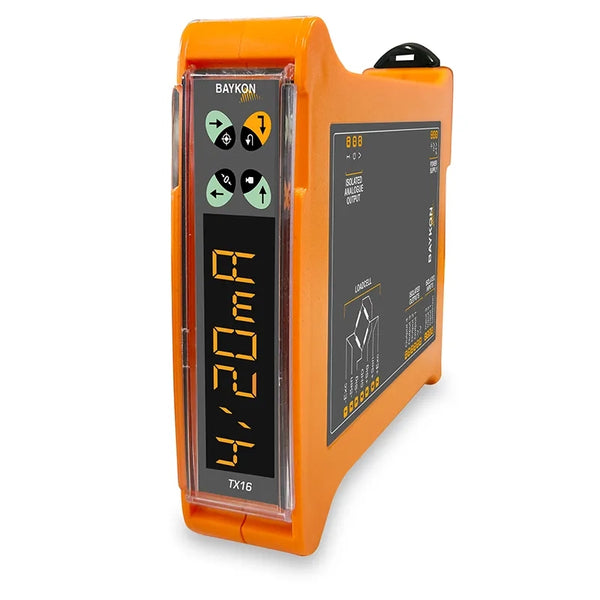

The BAYKON TX16 Analogue Transmitter is a high-performance industrial analogue transmitter designed for fast and precise weighing, force, pressure, and process control applications. Featuring up to 1600 conversions per second, a high-resolution 16-bit analogue output, and an internal resolution of 1 billion steps, the TX16 delivers exceptional accuracy and stability in demanding industrial environments.
Designed for easy commissioning and maintenance, the TX16 features a 6-digit alphanumeric LED display that continuously monitors analogue output values with an accuracy of 0.02%. The transmitter supports multiple analogue output formats and can be easily programmed via PLC or PC, making it suitable for a wide range of automation and process control systems.
Features
- High-speed analogue transmitter for industrial weighing and process control
- Up to 1600 conversions per second with 40 ms analogue output rate
- 16-bit high-resolution analogue output with 1,000,000,000-step internal resolution
- Real-time output monitoring via 6-digit alphanumeric LED display
- Supports 4–20 mA, 0–20 mA, 0–5 V, 0–10 V, ±5 V and ±10 V analogue outputs
- Programmable using PLC or PC
- eCal electronic calibration with <0.01% instrument error
- Adaptive 7-step digital vibration filter for stable measurements
- Compatible with both 4-wire and 6-wire load cells
- Supports up to 8 × 350 Ω or 24 × 1100 Ω load cells
- 3 programmable opto-isolated setpoint outputs and 1 error output
- 3 opto-isolated digital zeroing inputs
- DIN rail mounting with rugged IP20 polyamide enclosure
Ideal Applications
- Tank and silo weighing systems
- Industrial process control
- Force and load measurement
- Compression and tensile testing
- Pressure measurement systems
- Stress measurement applications
- Dosing and batching systems
- Industrial alarm systems
Technical Specifications
- Analogue Outputs: 4–20 mA, 0–20 mA, 0–5 VDC, 0–10 VDC, ±5 VDC, ±10 VDC
- Conversion Speed: Up to 1600 conversions/second
- Analogue Output Update Rate: 40 ms to 1.5 s
- Display: 6-digit alphanumeric LED (0.02% display accuracy)
- Load Cell Excitation: 5 VDC
- Load Cell Capacity: Up to 8 × 350 Ω or 24 × 1100 Ω
- Measurement Range: ±75 mV (bipolar) or 0–75 mV (unipolar)
- Power Supply: 10–28 VDC
- Power Consumption: Less than 1.5 W
- Operating Temperature: -15°C to +55°C
- Humidity: Maximum 85% RH (non-condensing)
- Dimensions: 30 × 112 × 132 mm
- Mounting: DIN Rail
- Protection Rating: IP20
